Light up Revoltec neon for PC |
This article is intended to show you how to reduce the diameter of the tube used to protect the neon (10cm version here) using a straw of diameter 5.5mm.
|

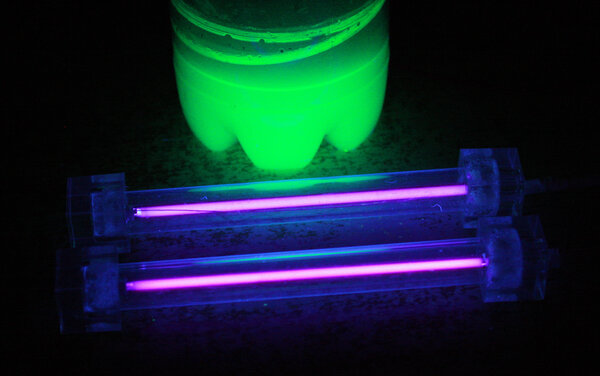

Original package :

Neons are protected by 10.5mm diameter polycarbonate tube blocked by 14x14x10mm polycarbonate blocks .
The assembly is thermally sticked giving a really poor result (white traces).

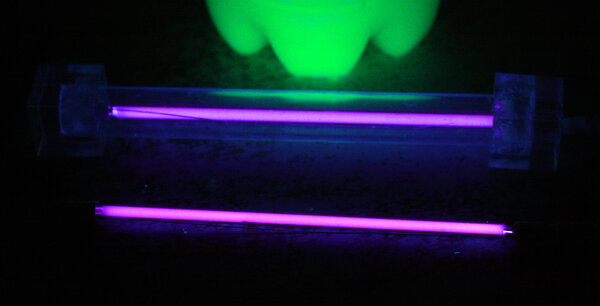

Neon alone :

Neons have a diameter of 3mm, welds are insulated with heat shrink.

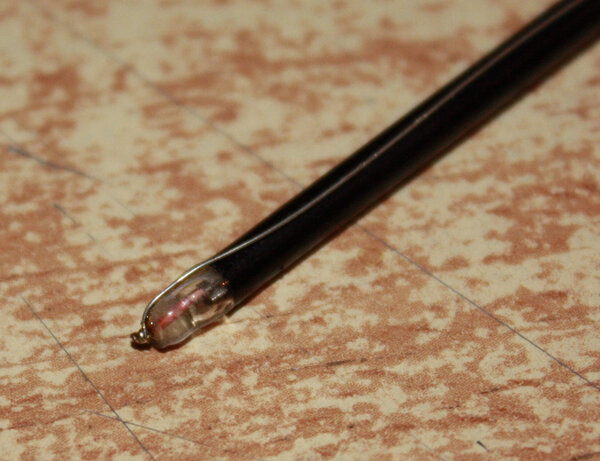

Without heat shrink :

Remove heat shrink.

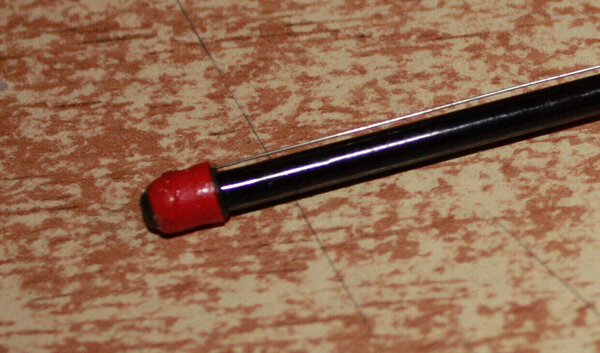

New heat shrink :

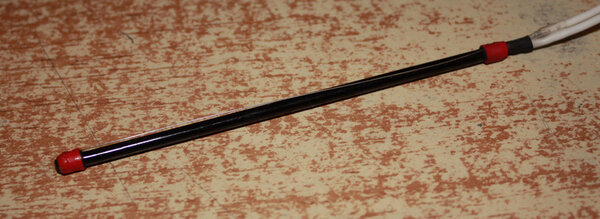

Full view:

Put two layers of shrink tubing to help support the tube.

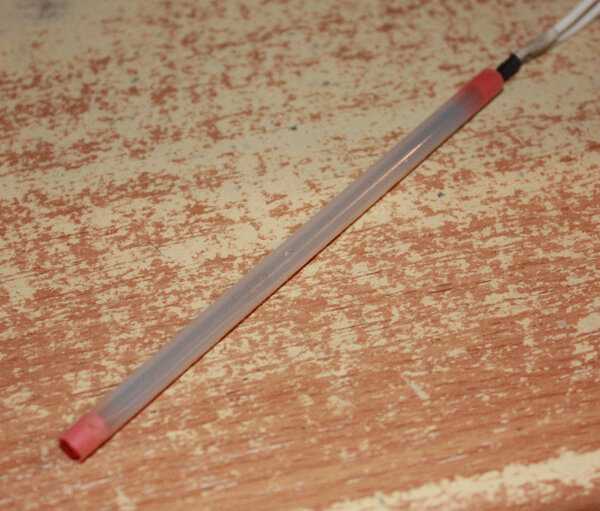

Once installed tube :

If tube still movible, use paper stick.

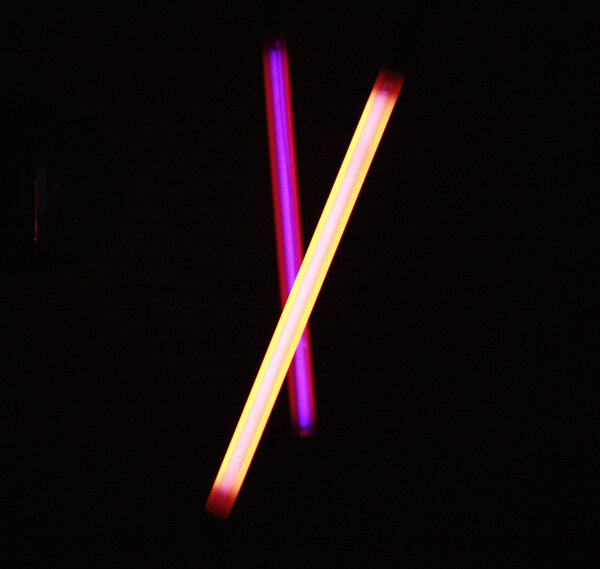

Final result :

This article has helped reduce the width of 14mm neon within 6mm.
If you have any questions, contact me.
|
