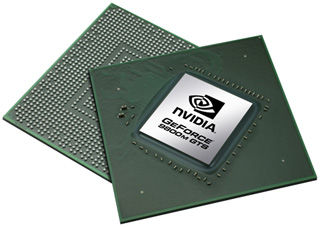

Overclocking - Geforce 9800M GTS
Overclocking test of the Geforce 9800M GTS 512mo:
Testing base:
- Clevo M570TU
- Intel Core 2 Duo T8300 @ 2.40Ghz
- 2x OCZ 1GB PC3-10666 SODIMM (OCZ3M13331G)
- SEAGATE Momentus 7200.2 ST9160823ASG
- Windows XP Professionnel SP2
Result:
Conclusion:
Despite the high performance of the original GPU, it enjoys a respectable overclock capacity ranging from +15 to +25% for a performance gain from 10 to 15% allowing it to reach the performance of aGeforce 9800M GTX.
Testing base:
- Clevo M570TU
- Intel Core 2 Duo T8300 @ 2.40Ghz
- 2x OCZ 1GB PC3-10666 SODIMM (OCZ3M13331G)
- SEAGATE Momentus 7200.2 ST9160823ASG
- Windows XP Professionnel SP2
Result:
| GPU Frequency | Memory Frequency | Shader Frequency | Stability limit | Score 3DMark06 | SM2.0 | SM3.0 | CPU |
| 600 | 800 | 1500 | na | 8975 | 4163 | 3954 | 2171 |
| 100.00% | 100.00% | 100.00% | 100.00% | 100.00% | 100.00% | 100.00% | |
| 700 | 950 | 1925 | 70?c | 9907 | 4625 | 4641 | 2178 |
| 116.67% | 118.75% | 128.33% | 110.38% | 111.10% | 117.37% | 100.32% | |
| 750 | 1000 | 1875 | 55?c | 10247 | 4828 | 4857 | 2191 |
| 125.00% | 125.00% | 125.00% | 114.17% | 115.97% | 122.84% | 100.92% |
Conclusion:
Despite the high performance of the original GPU, it enjoys a respectable overclock capacity ranging from +15 to +25% for a performance gain from 10 to 15% allowing it to reach the performance of aGeforce 9800M GTX.
